Digital Leeb Hardness Tester Automatically Identify 7 Types Of Impact Devices

Brand Name : LEEB

Model Number : Leeb120

Certification : CE, FCC, EAC, ISO

Place of Origin : CHINA

MOQ : 1 Set

Price : Based on quantity

Payment Terms : T/T, L/C, Western Union, Paypal

Supply Ability : 1000pcs per month

Delivery Time : 7 work days

Packaging Details : Equipment box

Name : Hardness tester, Durometer

Hardness scales : HRB, HRC, HV, HB, HS,HL

Standard : ISO, ASTM, GB/T

Accuracy : Within ±6HLD/ ±1.5HRC

Memory : 350 groups

Display : Digital

Dimension : 129×68×25mm

Theory : Leeb

Application : Metal

Probe Options : D,DC,D,DC,DL,D+15,G,C,E

Calibration : On HL, HB, HRC Blocks

PC connection : Available

Warranty : 1 Year

Contact Now

Digital Leeb Hardness Tester Automatically Identify 7 Types Of Impact Devices

Portable Leeb Hardness Tester For Metal Materials (Available for PC connection)

Features and Function:

  • Direct calibration on HL,HRC,HB
  • Automatically identify 7 types of Impact devices for special application
  • Freely switch to hardness scales HRB, HRC, HV, HB, HS,HL
  • Test at any angle, even upside down
  • Large LCD screen with back-light, showing all functions and parameters
  • Upper and lower limit and sound alarm
  • Conversion to tensile strength (U.T.S)
  • Optional probe D,DC,D,DC,DL,D+15,G,C,E
  • PC connection is available

Measuring Materials:

  • Steel and cast steel, alloy tool steel, stainless steel, an alloy of copper and tin, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper (bronze), forged steel.

Application Fields

  • The bearings and other parts, heavy work-pieces, metal material, pressure vessel, failure analysis of turbine generator unit and equipment
  • Mechanical or permanent assembly components have been installed, the test space is very narrow, requires the original record regular test results
  • Large work-piece within a wide range of more rapid test measurement site

Technical Specification

Model Leeb120
Measuring Range

(170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV,

(30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness parameter HL, HRC,HRB, HS,HB,HV
Accuracy ±6HLD/ ±1.5HRC
Memory 350 groups
PC Connection Available
Battery 2 AAA
Operating Temperature -20℃~+60℃
Dimensions 129×68×25mm
Impact Devices D,DC,DL,D+15,G,C,E
Weight 240g

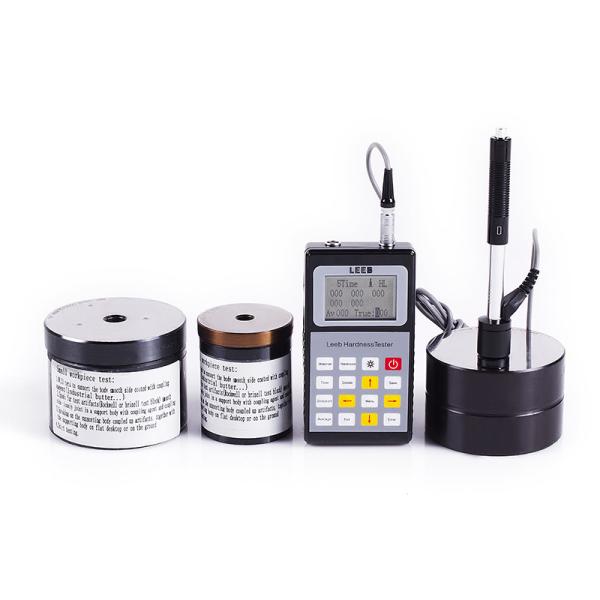

Standard Delivery

Main unit,Impact Device type D,Operation manual,

Small supporting ring,Cleaning brush,

Calibration block,Certificate.
Optional Accessories Optional Impact Devices, Shaped support ring
Digital Leeb Hardness Tester Automatically Identify 7 Types Of Impact Devices
